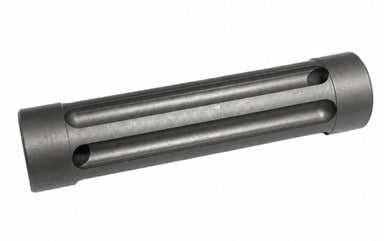

The IMS CF1 Cylindrical Filter Nozzle is designed to provide effective melt filtration in injection moulding applications, helping to prevent contamination and protect moulding equipment.
Ideal for use with regrind materials, the CF1 features a large filtration area and extended edge entrances to maximise filter openings while maintaining efficient polymer melt flow.
Features & Benefits

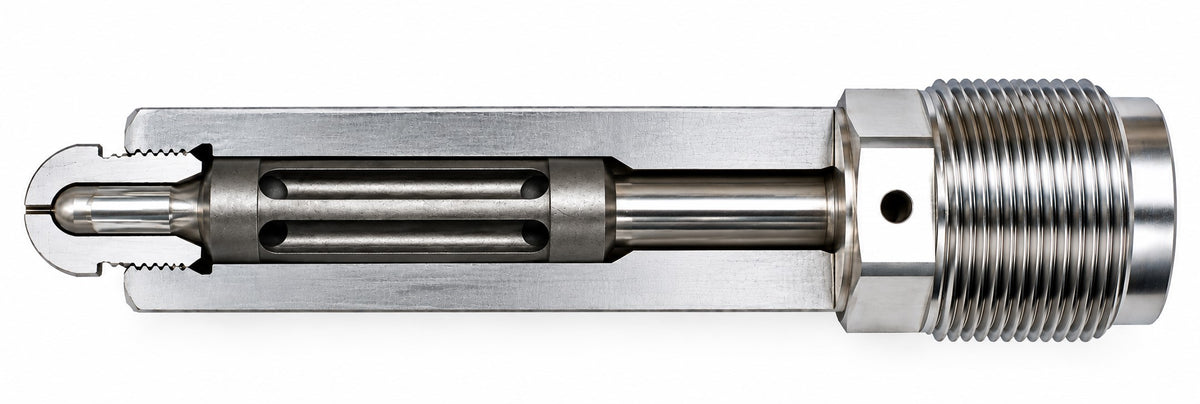

For use with our removable tip nozzles.
Easy to clean. Simply remove the tip, remove the filter and replace with a clean filter, replace the tip.
Ideal for use with regrind materials.
Large filtration area helps maintain efficient melt flow
Suitable for most injection moulding machines processing low-viscosity polymers
Designed to minimise pressure drop.
Helps remove foreign particles and contaminants from the polymer melt
Helps protect mould tools, hot runner systems and nozzle components
Robust construction for reliable performance.
Technical Specifications.
IMS Filter Part Number: CF1
Diameter: 16 mm
Overall Length: 67 mm
Filter Type: Cylindrical melt filter
Application: Injection moulding machines
The IMS Filter nozzle with the CF1 filter offers a reliable and cost-effective filtration solution, particularly where regrind materials are used and protection against contamination is essential.
Click the link below to complete the thread and send to sales@imscompany.co.uk for your quote.
